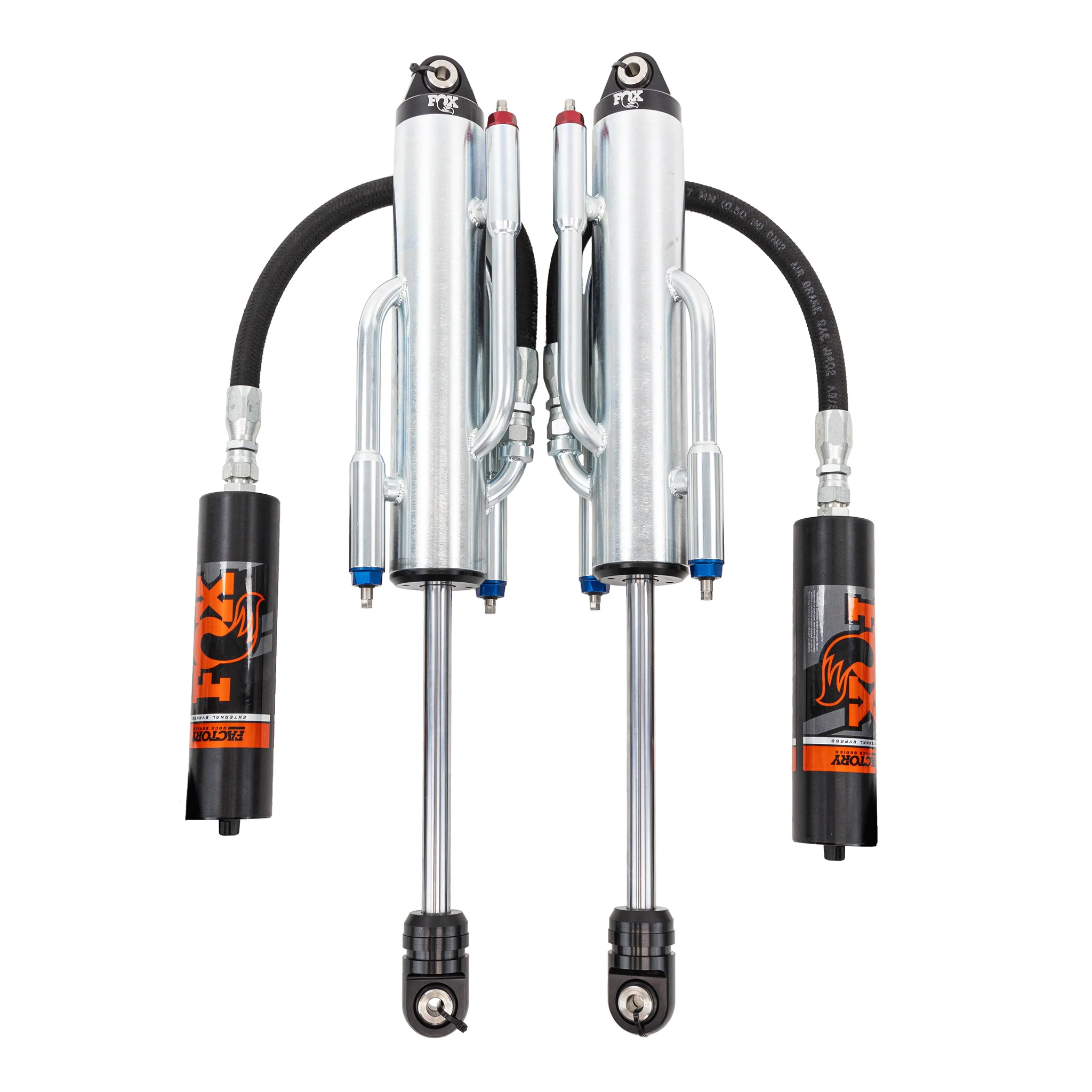

Race Kit Spec Fox Triple Bypasses
HomeStore

Race Kit Spec Fox Triple Bypasses

Race Kit Spec Fox Triple Bypasses

 Description

The Dirt King spec bypass shocks were developed specifically for our long travel race kits with a custom tube layout, custom valving, and custom hose lengths. Bypass shocks allow for superior suspension dampening by allowing adjustment of the compression and rebound throughout the shock travel. To fine tune the ride quality a shock tech can quickly make adjustments without removing the shocks from the vehicle. Please note that bypass shocks are noisy due to the steel needle that engages and disengages when fluid bypasses the piston.

 Specifications

  • Shock Manufacture: Fox

 What's Included

  • Fox spec built shocks with piggyback reservoirs

  Features

Body Smooth bore and honed seamless alloy body
Body Plating Zinc-plated and double-clear coated for long lasting finish
External Reservoir Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing PTFE-lined, heat-treated, alloy steel spherical

  Compatibility

Works with the following suspension systems: DK-632909, DK-631909, DK-635909, DK-542909, DK-541909.

Select Shock Diameter
From $937.65

Original: $2,679.00

-65%
Race Kit Spec Fox Triple Bypasses—

$2,679.00

$937.65

More Images

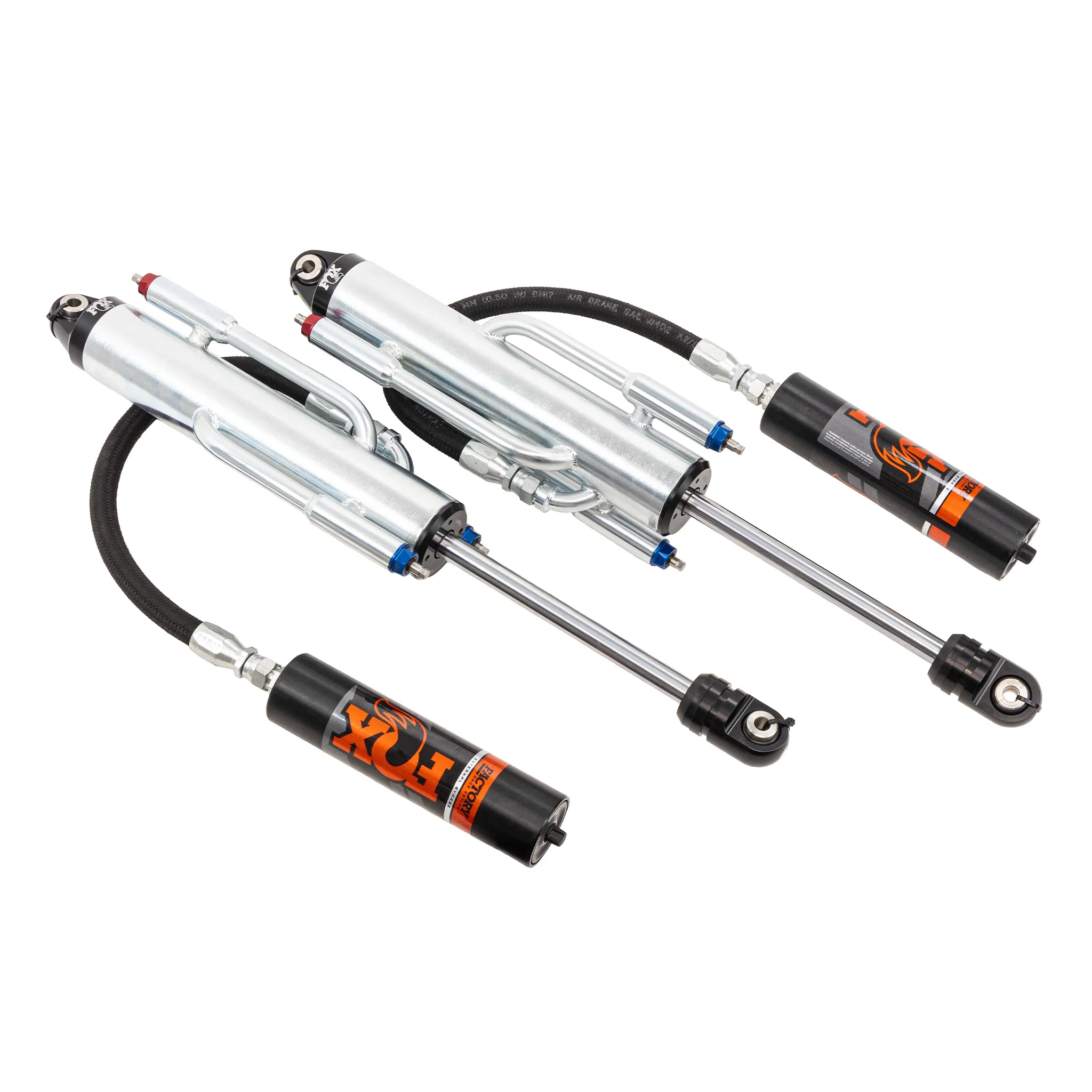

Race Kit Spec Fox Triple Bypasses - Image 2
Race Kit Spec Fox Triple Bypasses - Image 3

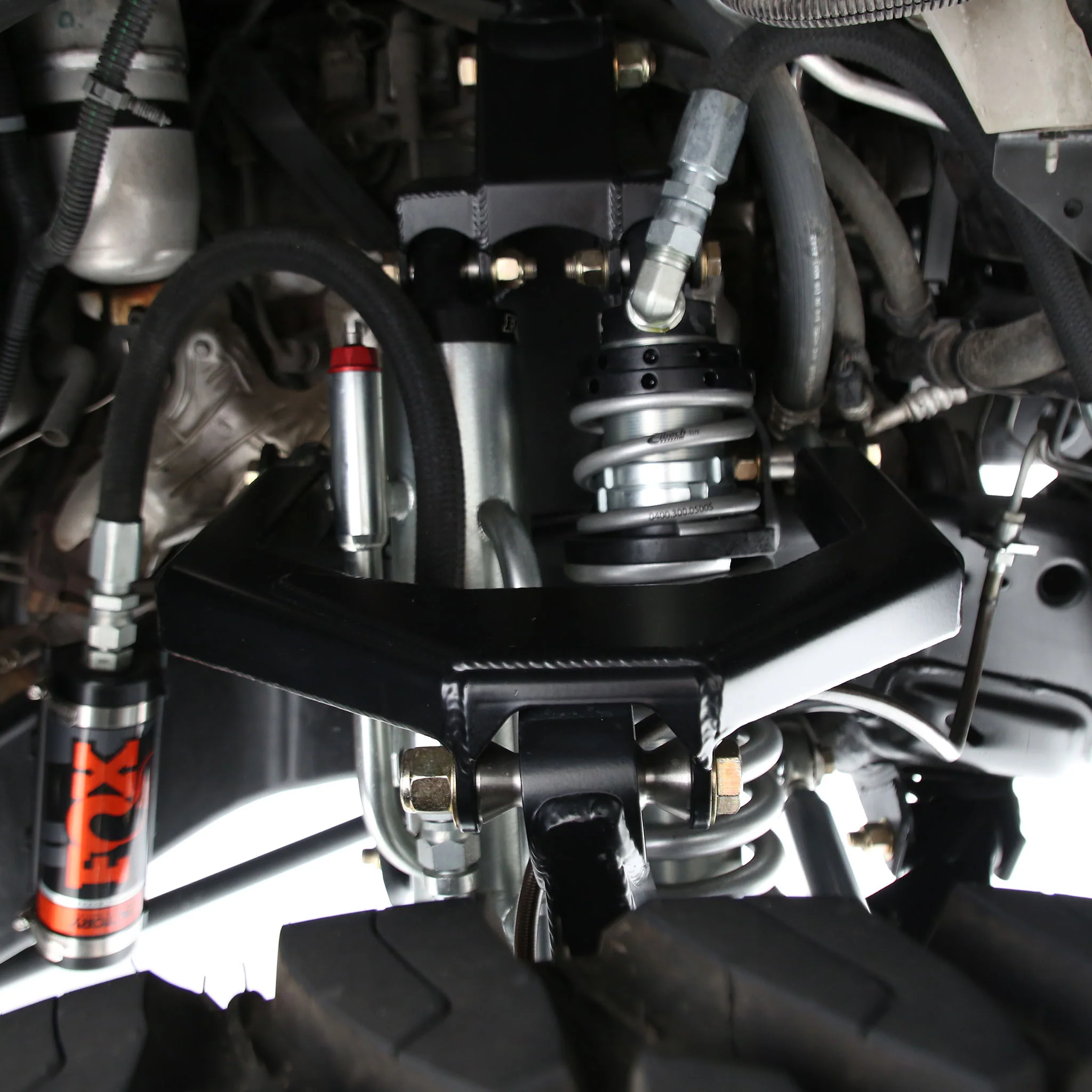

Race Kit Spec Fox Triple Bypasses - Image 4

Race Kit Spec Fox Triple Bypasses

 Description

The Dirt King spec bypass shocks were developed specifically for our long travel race kits with a custom tube layout, custom valving, and custom hose lengths. Bypass shocks allow for superior suspension dampening by allowing adjustment of the compression and rebound throughout the shock travel. To fine tune the ride quality a shock tech can quickly make adjustments without removing the shocks from the vehicle. Please note that bypass shocks are noisy due to the steel needle that engages and disengages when fluid bypasses the piston.

 Specifications

  • Shock Manufacture: Fox

 What's Included

  • Fox spec built shocks with piggyback reservoirs

  Features

Body Smooth bore and honed seamless alloy body
Body Plating Zinc-plated and double-clear coated for long lasting finish
External Reservoir Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing PTFE-lined, heat-treated, alloy steel spherical

  Compatibility

Works with the following suspension systems: DK-632909, DK-631909, DK-635909, DK-542909, DK-541909.
